Product Description

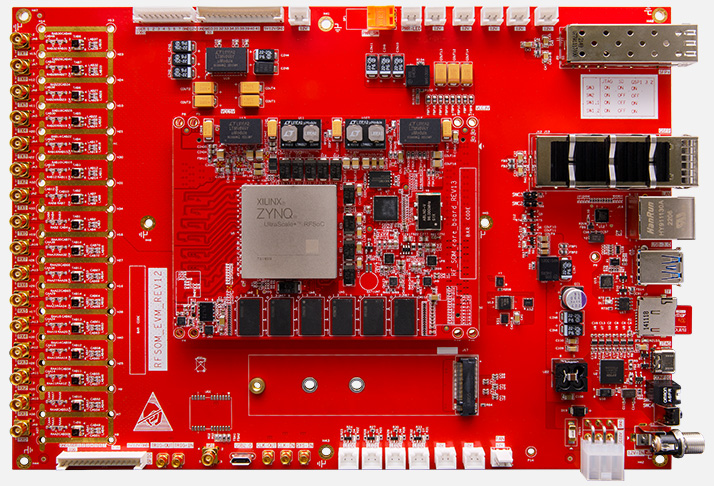

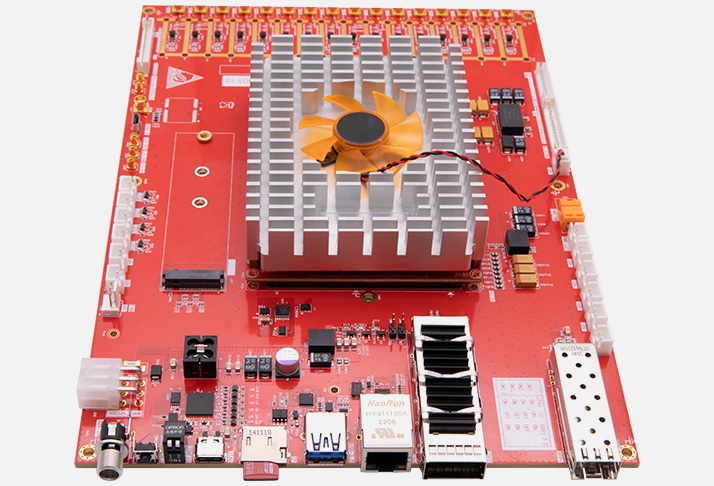

The AXRF47 development board Adopting Zynq UltraScale+RFSoC Gen3 series ZU47DR FPGA chip, integrating RF direct sampling data converter, FPGA logic, complete ARM processor subsystem, and high-speed transceiver. Supports 8-way 14bit RF-ADC with a maximum sampling rate of 5GSPS, and 8-way 14bit RF-DAC with a maximum sampling rate of 9.85GSPS. The RF input and output frequency response fully supports the frequency band below 6GHz. Provide a comprehensive RF signal chain, maximize input/output channel density, high bandwidth, heterogeneous processing capabilities, and low power consumption.

Meet the needs of large-scale MIMO radio, 5G baseband, fixed wireless access, cable TV access, testing and measurement, satellite communication, phased array radar/digital array radar, and other high-performance RF applications.



Applications

• 5G FR1/FR2 RF and baseband

• phased array system

• Radar system

• software radio

• Medical system

• Spectrum monitoring

Key Features

System-on-Module

• AMD/Xilinx Zynq™ Ultrascale+™ RFSoC:
  • ARM® quad-core Cortex™-A53 up to 1.333GHz
  • ARM® dual-core Cortex™-R5F up to 533MHz
  • 16nm FinFET+ FPGA fabric
  • Digital RF-ADC, RF-DAC
• Pluggable module with 2 x Samtec board-to-board connectors
• 4 GByte (64-bit) DDR4 SDRAM on PS
• 2 GByte (32-bit) DDR4 SDRAM on PL
• 1Gb QSPI Flash

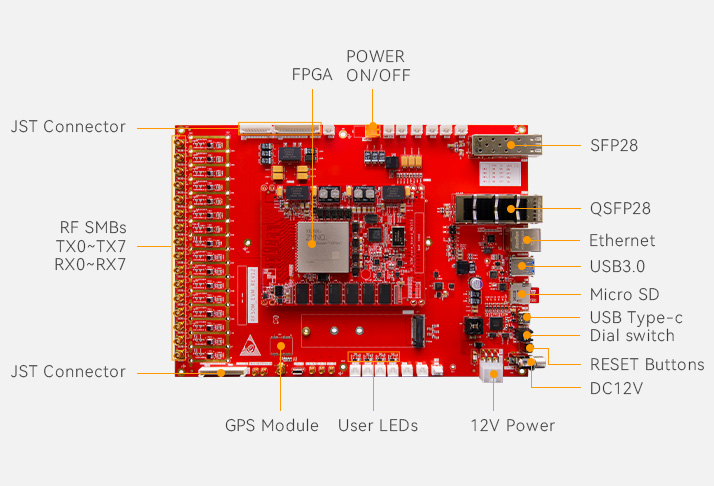

Base Board

• 1 x M.2 Interface
• 1 x QSFP28 fiber optic
• 1 x SFP28 fiber optic
• 1 x Gigabit Ethernet
• RF SMBs
  • 8 x 14bit RF-ADC @ 5.0 GSPS
  • 8 x 14bit RF-DAC @ 9.85 GSPS
• 1 x USB3.0
• 1 x UART on PS (USB to UART)
• 2 sets of PL IOs (x8), 1 set of PS IOs (x10)
• 1 x JTAG
• 1 x Micro SD
• EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
• 4 x LED
• 1 x KEY (1 x RESET )
• 12V single supply
• Dimensions: 254 x 180 mm form factor
